ASE45601300000 Upínacia súprava „AUDI“ VAS 6131/10

Accessories for the scissor-type assembly platform VAS 6131...
This support set allows Audi assemblies to be correctly mounted on the scissor-type assembly platform.
The base plates, mounting cones, threaded spindles and adapters are designed so that they can be replaced and combined in any configuration.
The plug-in design of the adapters provides additional variability. This ensures maximum flexibility with optimum reusability, which is particularly beneficial for future assemblies. The support set VAS 6131/10 can be supplemented when required with ease and at little expense.
First use is with the V8 4.0 l TDI engine in the Audi A8.
The setup instructions are given in the Workshop Manual.
Further applications are in development.

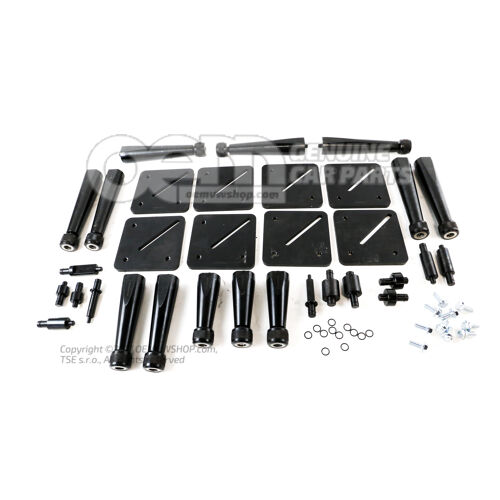

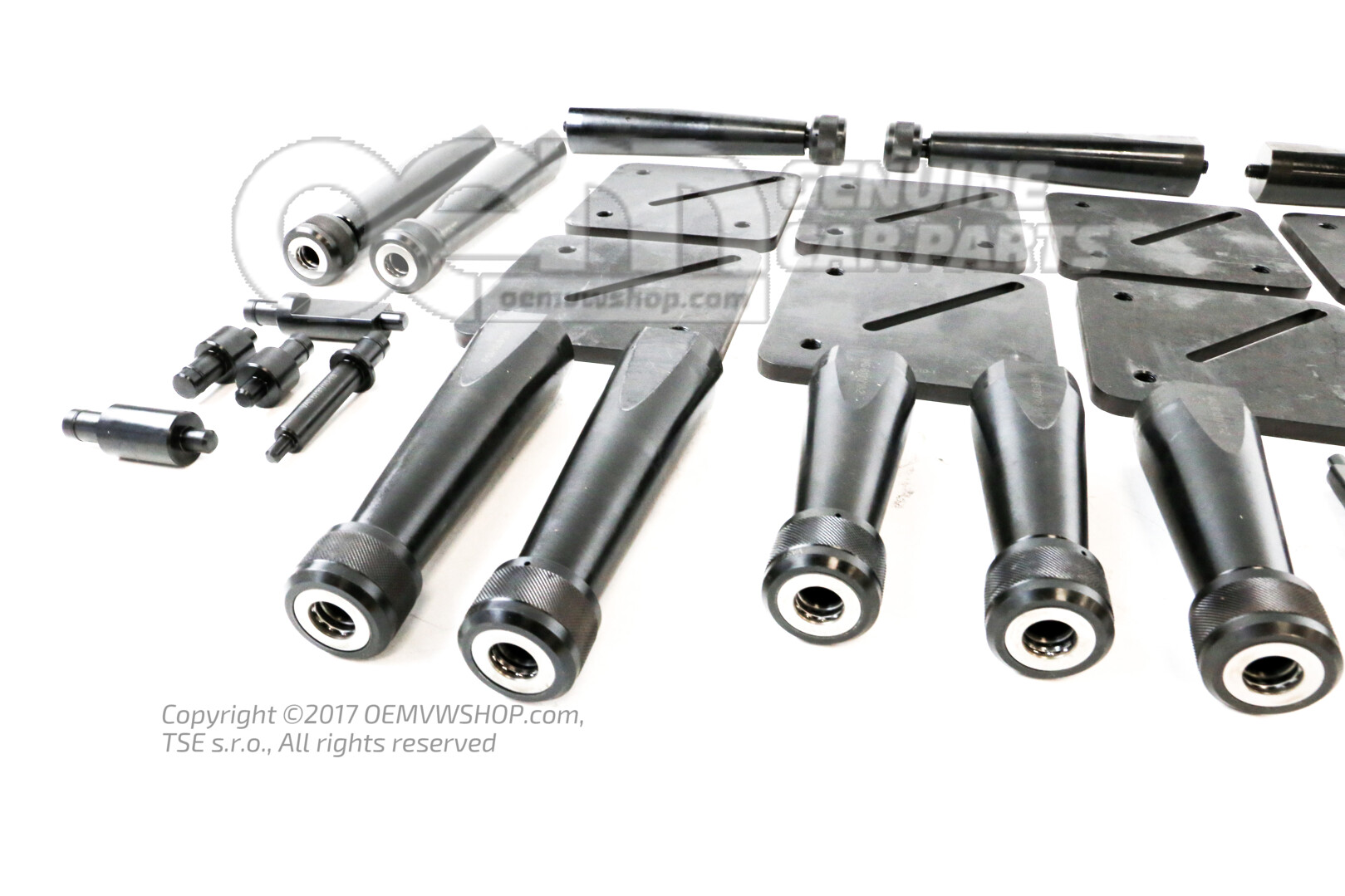

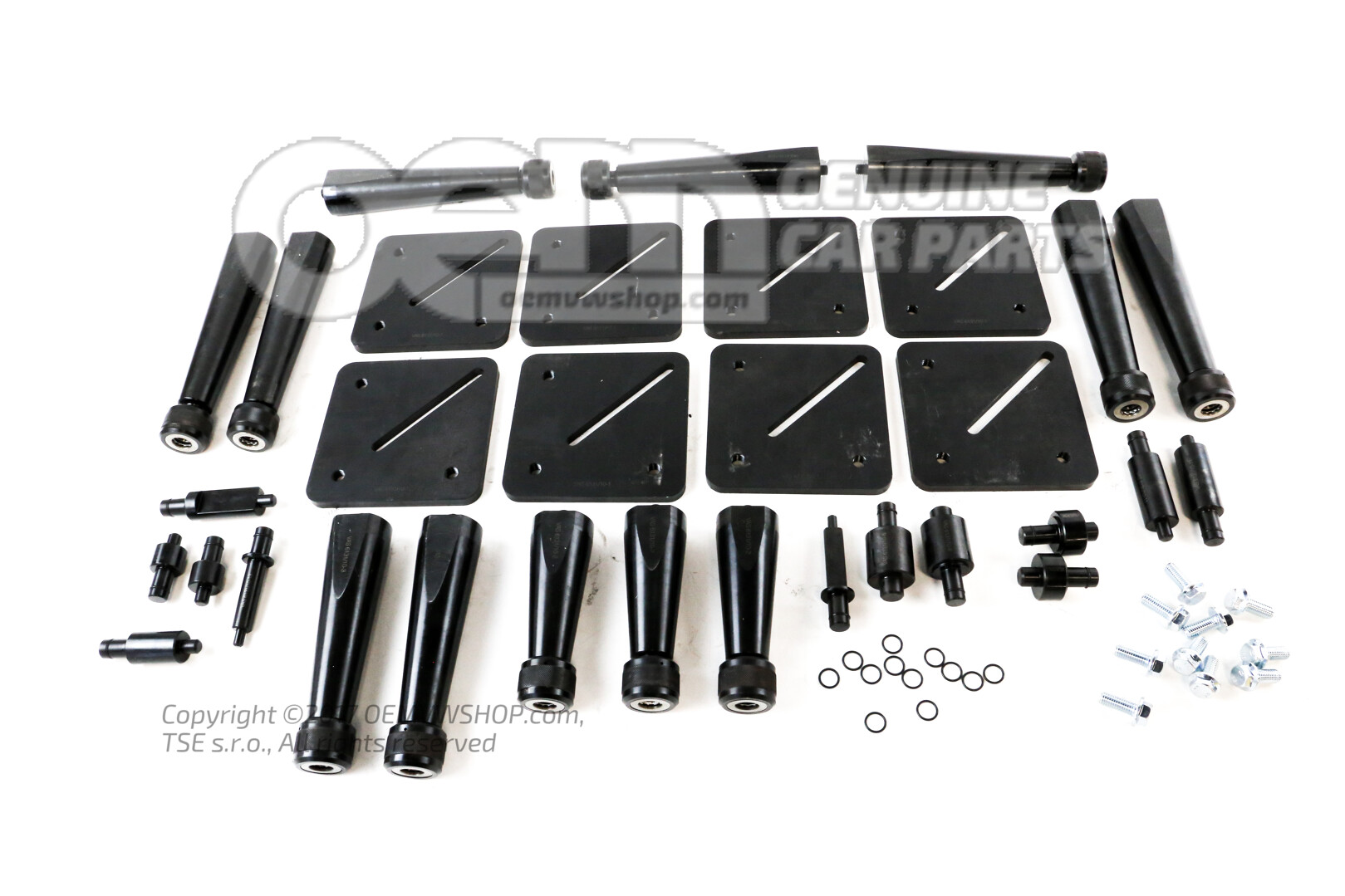

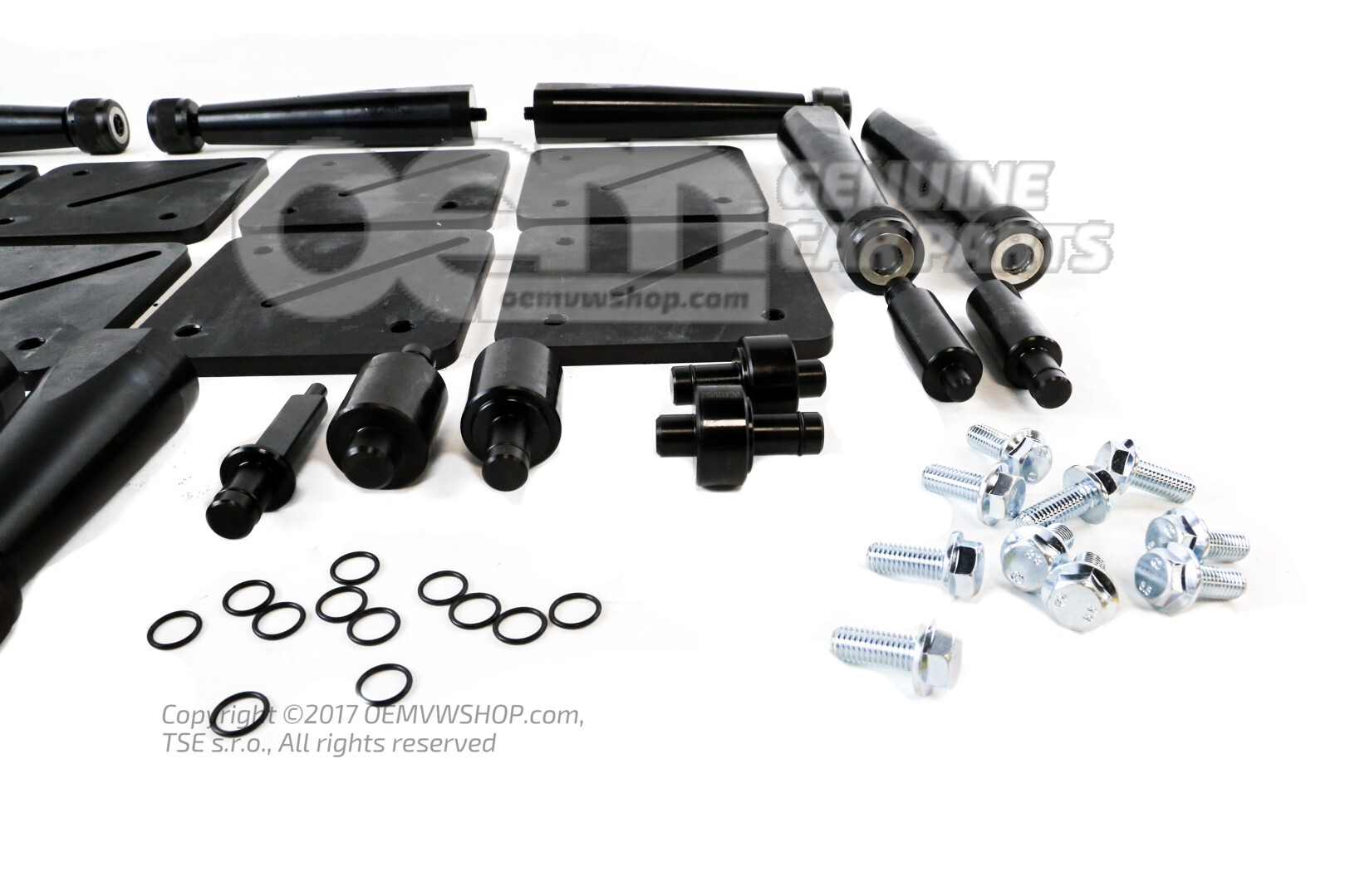

Delivery includes
8x base plate; VAS 6131/10-1
3x mounting cone; VAS 6131/10-2
2x mounting cone; VAS 6131/10-3
7x mounting cone; VAS 6131/10-4
12x threaded spindle; VAS 6131/10-5
2x adapter; VAS 6131/10-6
2x adapter; VAS 6131/10-7
2x adapter; VAS 6131/10-8
1x adapter; VAS 6131/10-9
1x adapter; VAS 6131/10-10
2x adapter; VAS 6131/10-11
1x adapter; VAS 6131/10-12
1x adapter; VAS 6131/10-13
10x hexagon bolt DIN 6921 M10x25-8.8
12x spare O-ring
------------------------------
ASE 456 013 00 000
------------------------------

Dimensions of the package (l X w X h)
480 / 290 / 150
