Nabíjačka akumulátora VAS 6923A ASE44713001000

Charger for high-voltage battery AC VAS 6923A

The mobile AC charger (ICCB) is used to provide power for electric vehicles with a type 2 charging connection (e.g. eUp, eGolf, etc.) in order to charge high-voltage batteries.
The charger can be distinguished by the following points in particular:

• Particularly robust housing and the use of suitable electrical and electronic components in order to withstand a free fall from a height of 1 m.
- Special sealing system, particularly in the area around the cable, for reliable protection against the penetration of moisture.
- Charging capacity of up to 11 kW.

The charger meets the following specifications, amongst others:
Technical data
Input voltage 400 VAC+/- 10% 50 Hz 3 phase + neutral conductor + protective conductor
Mains connection CEE connector 400 V/16 A (3L+N+PE 6h acc. To IEC 60309)
Mains power cable 4.5 m long (fixed)
Output voltage range 400 VAC+/- 10% 50 Hz 3 phase
Connecting cable to the vehicle 7.5 m long (fixed)
Vehicle connection Type 2; 680 ? (between PE and PP); IECa 62196-2
Efficiency >95%
Charging capacity Up to 11 kW (depending on the vehicle type)
Housing protection class IP65
CEE plug protection class IP67 plugged (Note that a suitable mating plug is required) alternatively IP 44 (standard also possible)
Protection class type 2 plug IP44 plugged or IP 54 with protective cap
Electrical protection class II (double or reinforced insulation)
Fall heightMax. 1 m
Operating temperature
-30 °C to +50 °C
Max. installation height
5000 m above sea level
Storage
-40 °C to +80 °C
Housing dimensions
Approx. 250*125*70 (L*W*H)
Protective device
Type B residual current device, 3-phase line protection 16A

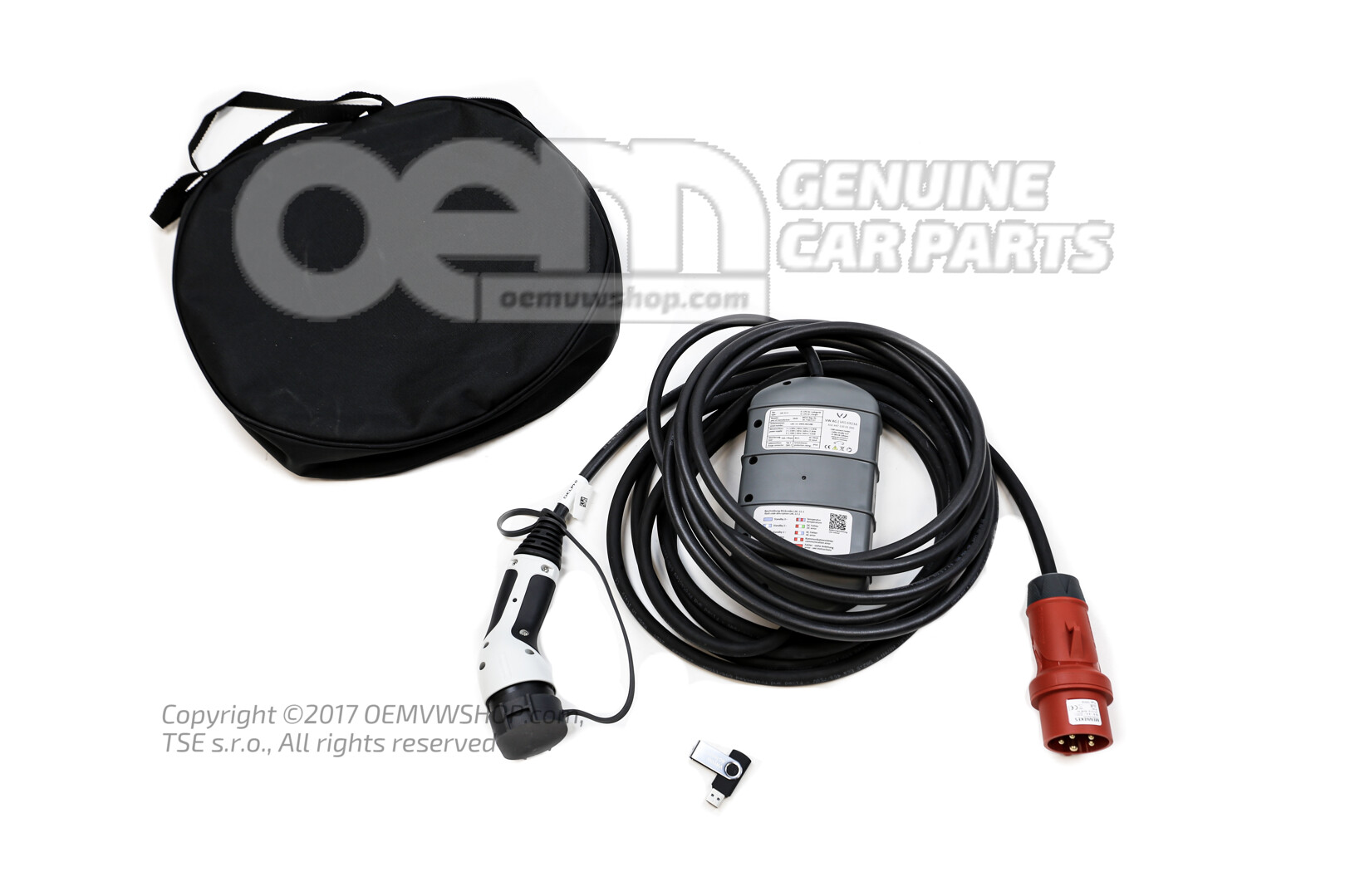

Delivery includes:
•AC workshop charger, mobile
• Plug connections and fixed mains cable for European use
• Protective cover (tear-resistant bag, washable, UV-resistant with lock)
• Operating instructions

Manufacturer
CAR-connect GmbH

#--- ASE44713001000 ---#

Dimensions of the package (l X w X h)
490 / 370 / 120
