Diagnostické rozhranie Diagnostické rozhranie (Wi-Fi) ASE40543103000
Diagnosis interface (Wi-Fi)
The diagnosis interface is required for vehicle diagnostics and can be used together with the “Offboard Diagnostic Information System service” and the “Offboard Diagnostic Information System engineering”. Viac v popise produktu
The diagnosis interface is required for vehicle diagnostics and can be used together with the “Offboard Diagnostic Information System service” and the “Offboard Diagnostic Information System engineering”. Viac v popise produktu
Prosím, overte si u nás dostupnosť dielov pre vozidlá staršie ako 10 rokov.
Dostupnosť:Doba spracovania 7-21 dni
Diagnostické rozhranie Diagnostické rozhranie (Wi-Fi) ASE40543103000
Diagnosis interface (Wi-Fi)
The diagnosis interface is required for vehicle diagnostics and can be used together with the “Offboard Diagnostic Information System service” and the “Offboard Diagnostic Information System engineering”. The further developed diagnosis interface performs diagnosis functions on modern vehicles at full CAN bus FD speed. Additionally, the Wi-Fi range and roaming times have been significantly improved. If it is not possible to establish a Wi-Fi connection, the USB module is used and ensures reliable, wired data transmission to the diagnosis device. Configuration is performed conveniently using a web-based user interface.
Product advantages
Scope of delivery
Technical information
Dimensions of the package (l X w X h)
274 / 175 / 126
The diagnosis interface is required for vehicle diagnostics and can be used together with the “Offboard Diagnostic Information System service” and the “Offboard Diagnostic Information System engineering”. The further developed diagnosis interface performs diagnosis functions on modern vehicles at full CAN bus FD speed. Additionally, the Wi-Fi range and roaming times have been significantly improved. If it is not possible to establish a Wi-Fi connection, the USB module is used and ensures reliable, wired data transmission to the diagnosis device. Configuration is performed conveniently using a web-based user interface.
Product advantages
- Comprehensive support with group vehicle diagnosis: Only the VAS 6154X forms a perfectly matched diagnosis system together with the “Offboard Diagnostic Information System service” and the VAS 6150X/6160X diagnosis devices
- Exclusive, future-proof functionality: Using the diagnosis interface is the only way to ensure that the diagnosis unit has guaranteed access to all data from group vehicles now and in the future, as it is also used in vehicle development
- Smooth, efficient work: Compared to the typical Bluetooth® connection, the Wi-Fi connection offers a greater range and improved reliability; the USB module included upon delivery also ensures that the data can be transmitted to the diagnosis device reliably via a wired connection
- Intelligent premium technology: The diagnosis interface with Wi-Fi module can also be connected directly to the diagnosis device via a Wi-Fi connection if no Wi-Fi Access Point is available – the “Diagnostics over Internet Protocol” diagnostic log also guarantees that the device is optimally future-proof

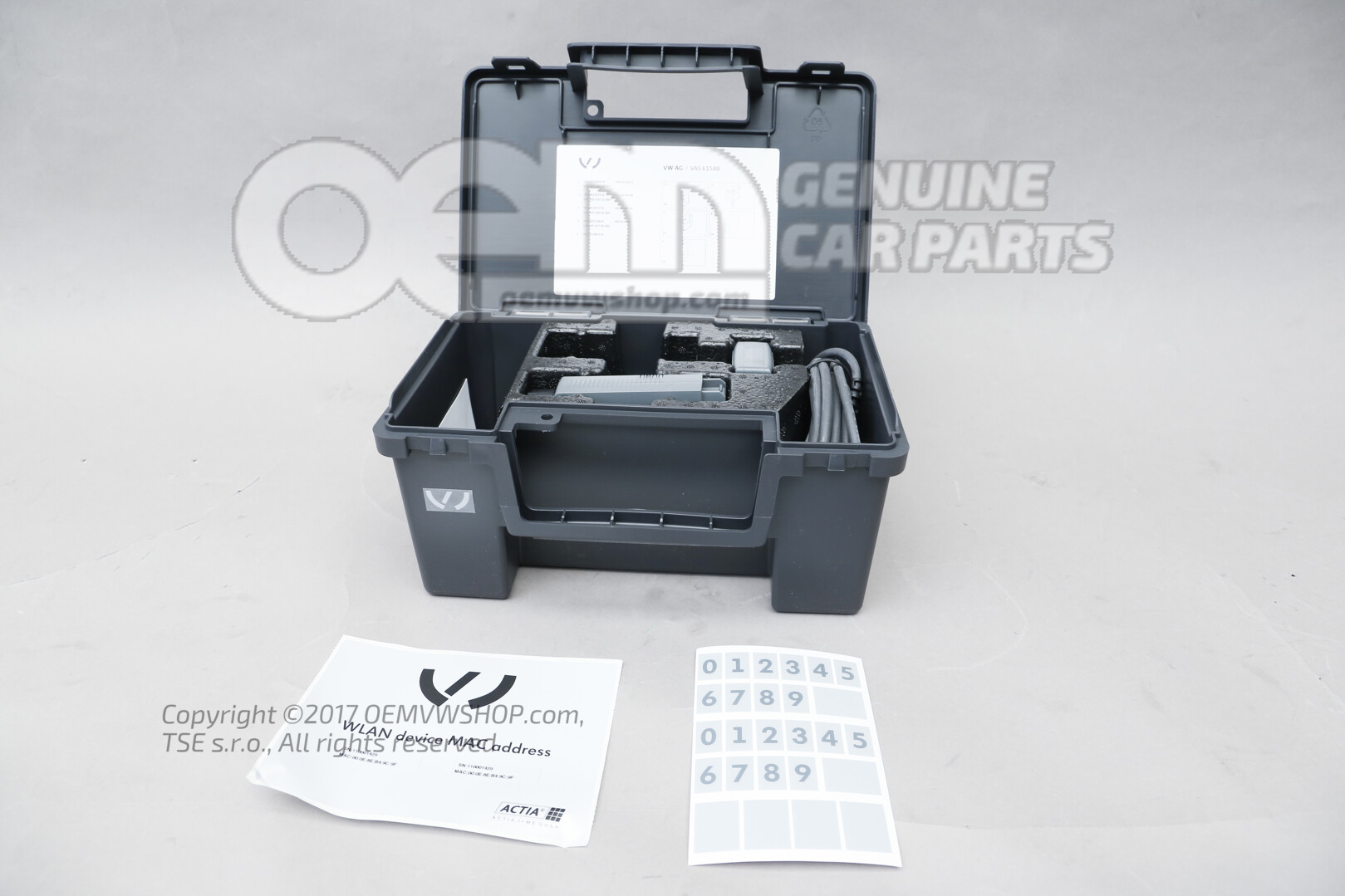

Scope of delivery
1xInterface-Modul VAS 6154A/1
1xUSB-Modul VAS 6154/4B
1xWLAN-Modul VAS 6154/5A
1xKennschilder (Modulbeschriftung) VAS 6154/6
1xAufbewahrungskoffer
1xKurzanleitung in Papierform (4-sprachig) D, GB, F, E
1xUSB-Modul VAS 6154/4B
1xWLAN-Modul VAS 6154/5A
1xKennschilder (Modulbeschriftung) VAS 6154/6
1xAufbewahrungskoffer
1xKurzanleitung in Papierform (4-sprachig) D, GB, F, E
Technical information
The USB module has a rugged USB connector with nine pins, rather than seven. It can therefore be directly connected to the VAS 6150F, meaning that it is no longer necessary to use the VAS 652 009 adapter with the VAS 6154B. To connect old laptops – VAS 6105E or older – the VAS 652 011 adapter must be used.
Power supply: 8–18 V via vehicle connector
Power: Approx. 5 W
PC interface (wired): USB 2.0 high-speed, 480 Mbit/s or fast Ethernet, 100 Mbit/s (via LAN module)
PC interfaces (wireless):
Wi-Fi 802.11 ab/b/g/n 2T2R
300 Mbit/s client mode: (WPA2 EAP-TLS, WPA2 PSK), AP mode (WPA2 PSK)
Wireless approval for the following countries: AE, AR, AT, AU, BA, BE, BR, CA, CH, CY, CZ, DE, DK, DZ, EE, ES, FI, FR, GB, GR, HK, HU, IE, IL, IN, IS, IT, JP, KR, LT, LU, LV, MA, MT, MX,NL, NO, NZ, PL, PT, RU, SE, SG, SK, TR, TN, TW, UA, US, ZA
Power supply: 8–18 V via vehicle connector
Power: Approx. 5 W
PC interface (wired): USB 2.0 high-speed, 480 Mbit/s or fast Ethernet, 100 Mbit/s (via LAN module)
PC interfaces (wireless):
Wi-Fi 802.11 ab/b/g/n 2T2R
300 Mbit/s client mode: (WPA2 EAP-TLS, WPA2 PSK), AP mode (WPA2 PSK)
Wireless approval for the following countries: AE, AR, AT, AU, BA, BE, BR, CA, CH, CY, CZ, DE, DK, DZ, EE, ES, FI, FR, GB, GR, HK, HU, IE, IL, IN, IS, IT, JP, KR, LT, LU, LV, MA, MT, MX,NL, NO, NZ, PL, PT, RU, SE, SG, SK, TR, TN, TW, UA, US, ZA
Dimensions of the package (l X w X h)
274 / 175 / 126
Špecifikácia produktu
| HS CODE | 9031803890 |
| Kód kategórie | WDM |
| Rozmer | 2,5 x 13,6 x 4,8 |
| Výrobca | Genuine Volkswagen group part |
OEM číslo dielu:
ASE40543101000
100% ORIGINÁLNE NOVÉ DIELY
2 roky medzinárodná továrenská záruka
Doručujeme do celého sveta do viac ako 160 krajín
ASE40543101000
- Ak chcete vedieť, či tento výrobok pasuje do vášho vozidla, pošlite nám svoje číslo VIN.
- Ak chcete vedieť, koľko stojí doprava, uskutočnite proces objednávky.
